- Removes 99.97% of solids and fluids down to .3 microns
- Bowl guard supplied standard
- 3.8 oz bowl volume
- Easy “hands only” filter element replacement.

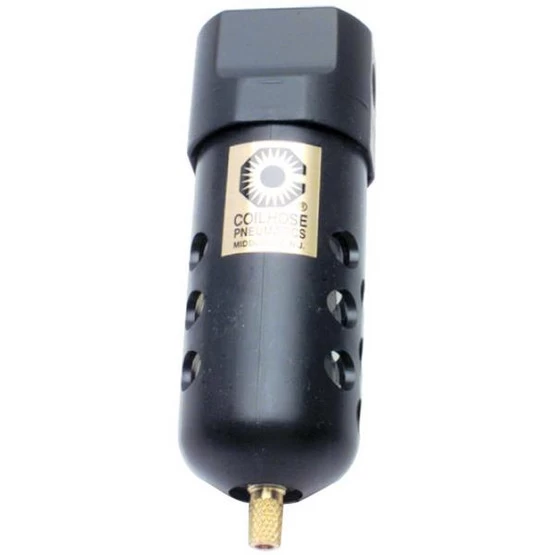

- The 26 Series Coalescing Filters offer a balance of compact size and optimum flow
- Utilizing a 3/8″ die cast aluminum body, this series is perfect for applications where performance, small size and low cost are important
- Available in 1/4″ and 3/8″ port sizes.Maximum Supply Pressure:
- Plastic Bowl: . . . . . . . . . . .150 PSI
- Metal Bowl: . . . . . . . . . . . .250 PSI
- Maximum Operating Temperature:
- Plastic Bowl: . . . . . . . . . .150° F
- Metal Bowl: . . . . . . . . . . .250° F
- Materials:
- Plastic Bowl: . . . . . . . . . .Polycarbonate
- Metal Bowl: . . . . . . . . . . .Zinc Die Cast
- Body: . . . . . . . . . . . . . . . .Zinc Die Cast
- Filter Element: . . . . . . . . . .Porous Polypropylene
- Height: . . . . . . . . . . . . . . . . . .6″
- Maximum Diameter: . . . . . . . .2″
- Bowl Capacity: . . . . . . . . . . . .3.8 oz.
