- 1/4″ inch gauge ports can be used as secondary outlet ports
- Balanced poppet valve design assures superior performance
- 0-250 PSI, 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges
- Self relieving feature prevents excessive pressure build-up
- Locking adjustment knob
- Panel mount and gauge options available.

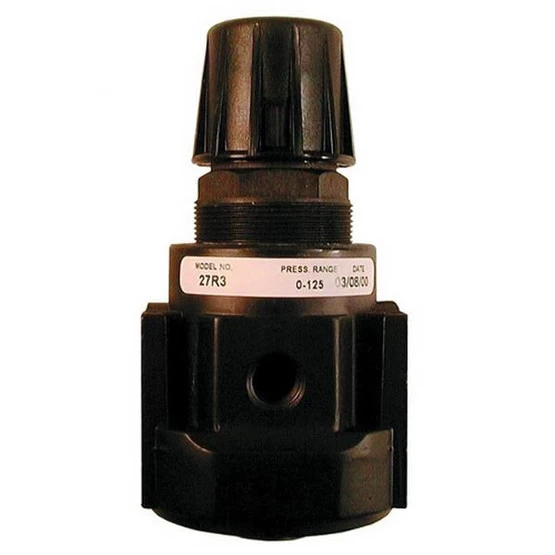

- The 27 Series Regulators are engineered for exceptional installation flexibility
- These units have a 1/2″ body for higher flow rates and are constructed of die-cast aluminum with a non-rising adjusting knob
- These Regulators can be connected to other 27 Series units using modular clamps or pipe nipples and can be individually connected to an airline using a panel mount bracket
- Maximum Supply Pressure: 250 PSI
- Maximum Operating Temp.: 250° F
- Materials:
- Adjusting Knob: . . . . . .High Impact Plastic
- Body: . . . . . . . . . . . . . .Die Cast Aluminum
- Height: . . . . . . . . . . . . . . . .5 1/2″
- Maximum Diameter: . . . . . .2 3/4″
- Bowl Capacity: . . . . . . . . . .1 3/4 lbs.
- Regulator Pressure Ranges:
- 0-200 – Optional
- 0-125 – Standard
- 0-60 – Optional
- 0-25 – Optional
