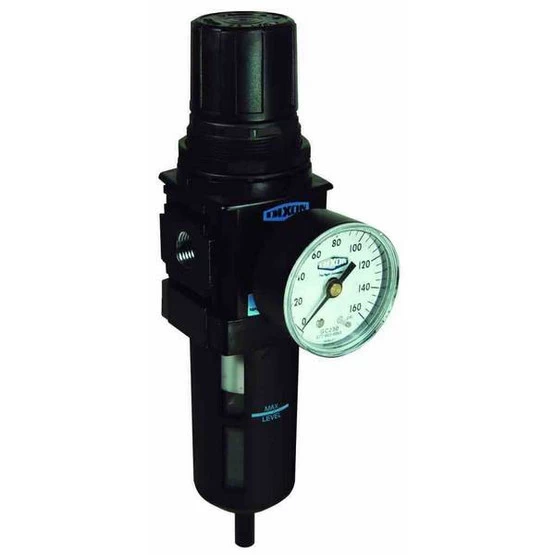

Dixon Valve B18-02AG 1/4″ Compact Filter/regulator, Auto Transparent Bowl W/guard, 88 Scfm

Original price was: $145.00.Current price is: $97.99.

SKU: DIX-B18-02AG Categories: Filters, Regulators & Lubricators, Pneumatic Tools

No-Questions-Asked Returns
Free 1 year warranty period
Free and fast shipping worldwide
The best quality products, always.

Description
Reviews (0)

Automatic Drain
Transparent Bowl and Guard
0-125 PSIG adjusting range
5 micron element
4 oz. bowl
self-relieving standard
spring-loaded diaphragm
supplied with a GC230 gauge
Designed for air service only!
SCFM ratings at 100 PSIG inlet pressure
Over-under units are space savers and provide for installation in tight areas.
One common inlet/outlet for both filter and regulator saves on piping costs.
To increase regulated pressure, pull adjusting knob and turn clockwise. To reduce pressure, turn knob counter clockwise. To lock knob, push down.
Two 1/4″ gauge ports located on the front and rear faces of the body. These ports may be used as additional regulated ports or for pressure gauges. Plug unused port(s).

Port: 1/4″
Maximum Operating Pressure: 150 PSIG
Temperature Range: 32F to 125F
Flow: 88 SCFM
